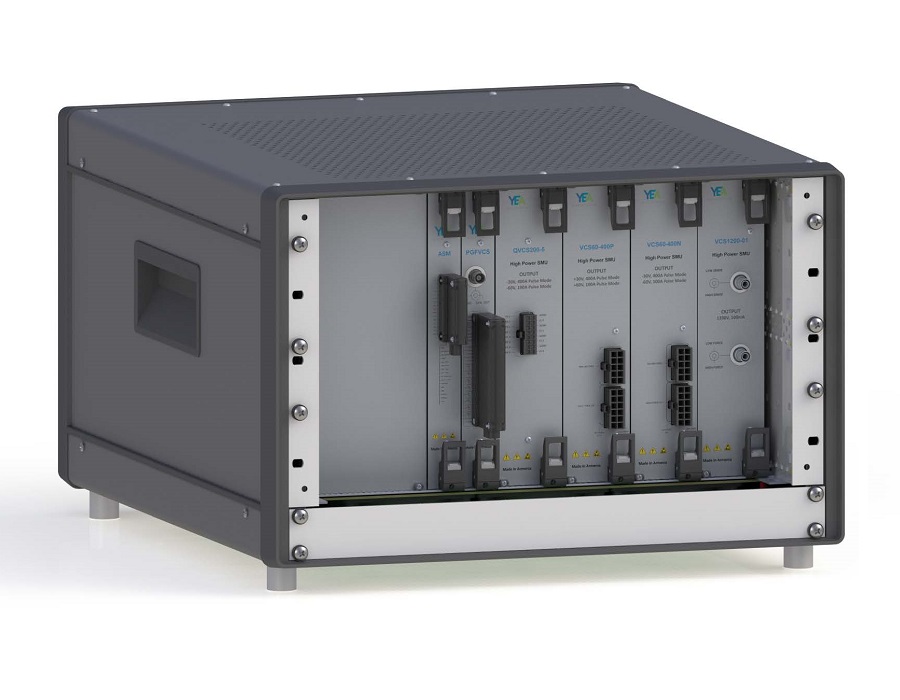

High Power VCS SMUs

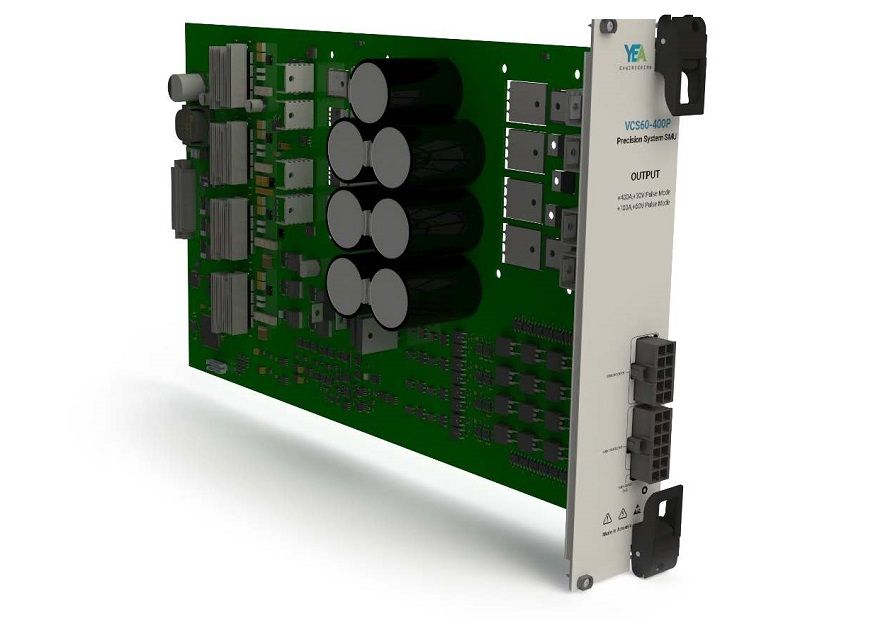

VCS is a series of high power SMUs designed to set/measure currents up to 400A and voltages up to 2400V.

VCS is a series of high power SMUs designed to set/measure currents up to 400A and voltages up to 2400V. The modular architecture allows more than one SMU to be connected to the same control bus and expand the overall channel bandwidth. All SMU channels are completely independent and allow parallel measurement of voltage and current. The sampling frequency and resolution of each measuring channel is 1MHz and 16bit, which allows you to control both static and dynamic processes.

The source meters of the VCS family are optimized for integration into test systems (ATE) designed for testing high power semiconductor devices. These SMUs can also be used as stand-alone benchtop instruments.

Connecting more than one SMU to the same chassis
Trigger lines for hardware synchronization of SMUs connected to the same chassis
Measurement channel sampling rate up to 1 MHz
All channels are completely independent of each other
Curve capture mode UI
Compatibility with LabVIEW 2020
Operating system Windows 10

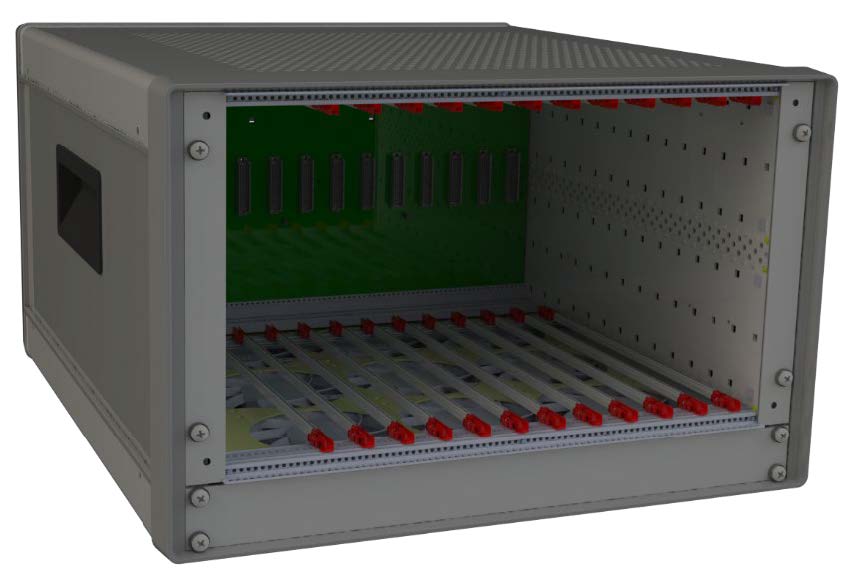

Number of slots in the chassis -12
