Temperature recorder, 16 channels
Compound:
- NI FlexLogger Software
- NI 9213 Spring 16-CH Thermocouple Input Module, 24-Bit x 1
- cDAQ-9171 CompactDAQ chassis (1 USB slot)
Specifications:

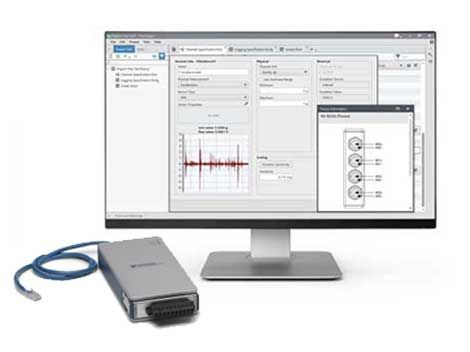

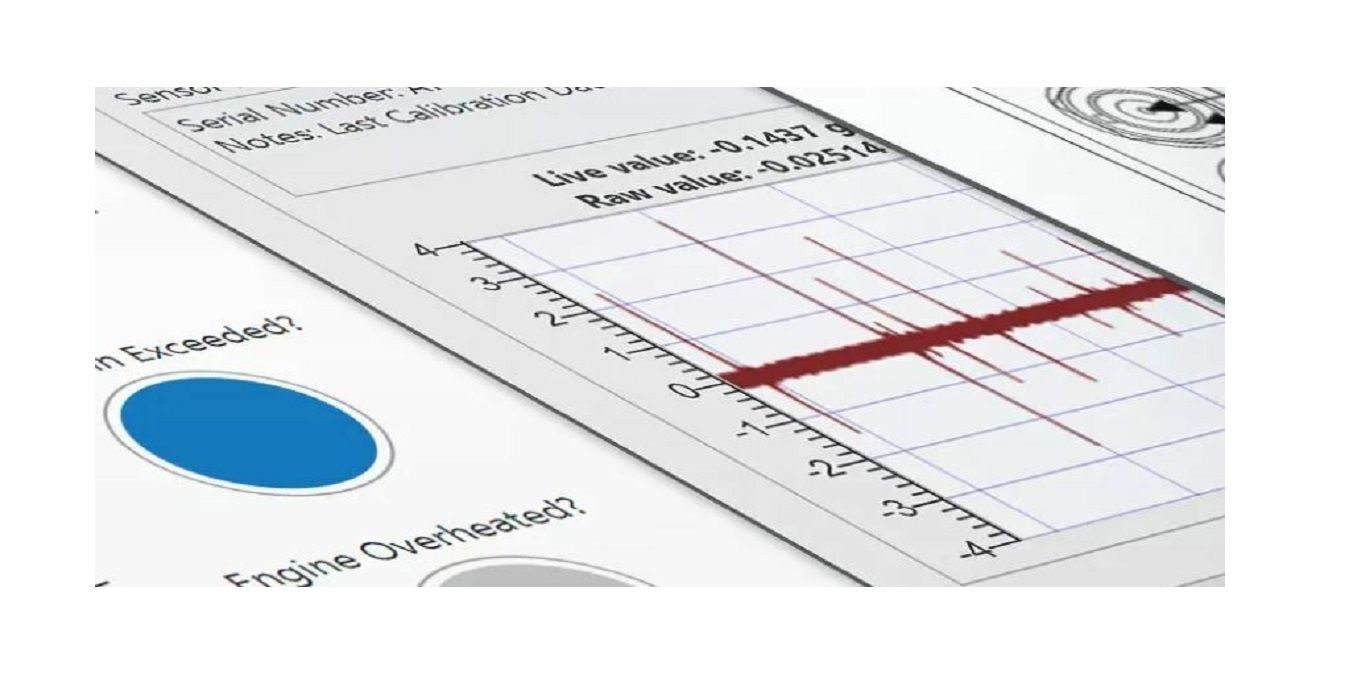

NI FlexLogger
FlexLogger - Software for quick sensor setup and data logging of various signal types for testing electromechanical systems without the need for programming.

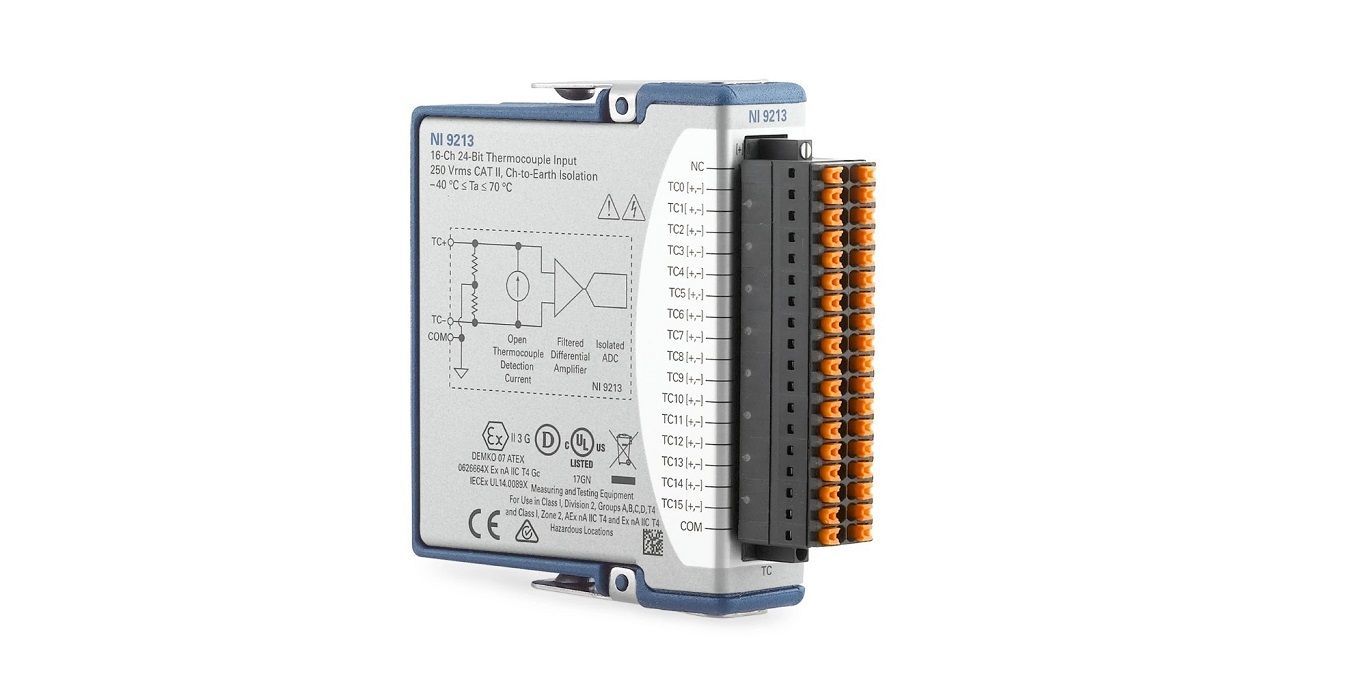

NI-9213
| Number of differential analog input channels | 16 |
| Maximum sample rate | 75 s/s |
| Analog Input Decoupling | 250 Vrms channel-to-ground isolation |
| Measurement Accuracy Example | 0.77 °C |
| Supported sensor type | All standard thermocouples |
| Front connection type | Spring terminal |
| The printed circuit board (PCB) is in a protective case. | Yes |
| The device has a protective coating to protect the electronics from moisture | Not |

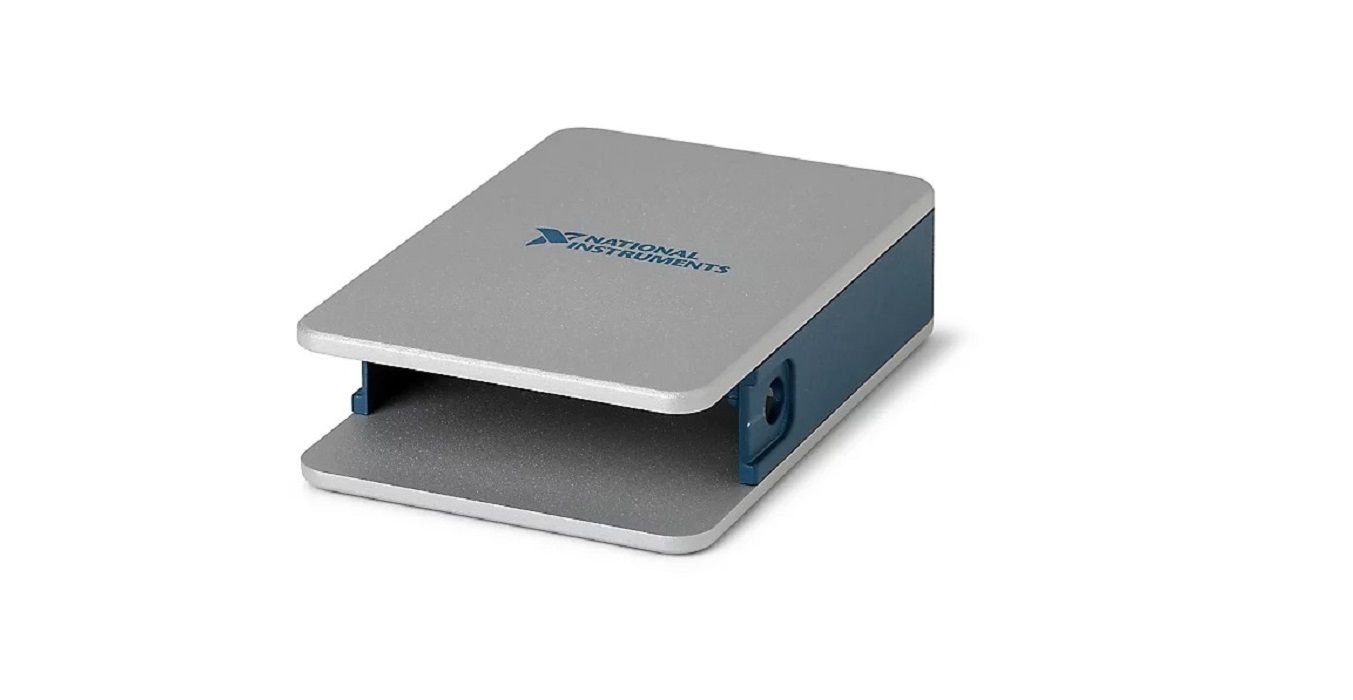

cDAQ-9171
| Bus connector | USB 2.0 |
| Supports hardware synchronization over the network based on the IEEE 802.1AS standard | Not |
| Trigger lines are available through device PFI lines | Not |
| Working temperature range | -20°C to 55°C |
