de QVCS200-5 SMU - SourceMeter VCS
The source meters of the VCS family
- Four independent channels
- 200mA (maximum output voltage ±200V)
- 2A (maximum output voltage ±20V)
The source meters of the VCS family are optimized for integration into test systems (ATE) designed for
testing high power semiconductor devices. These SMUs can also be used as stand-alone
benchtop instruments.
In voltage setting mode
In voltage measurement mode
testing high power semiconductor devices. These SMUs can also be used as stand-alone
benchtop instruments.
Features
- 4 independent channels
- High accuracy
- High resolution

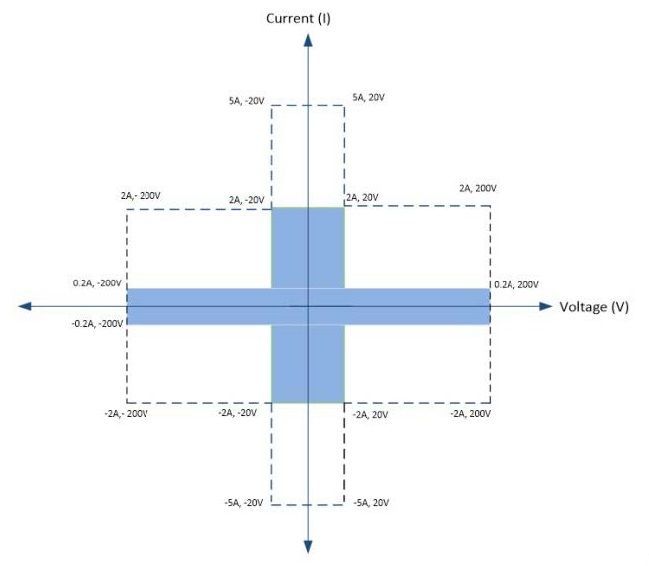

- 4-quadrant operation
- Max current continuous
- 200 mA (max output voltage ±200 V)
- 2 A (max output voltage ±20 V)
- Max current pulsed
- 2 A (2 mS 5 % duty cycle max, max output voltage ±200 V)
- 5 A (2 mS 5 % duty cycle max, max output voltage ±20 V)
- High-speed sampling rate up to 1MS/s
- Parallel voltage and current measurement
- Bandwidth selection (four positions)
- Compatible with LabVIEW 2020
- Operating system Windows 10
- Interface USB 2
- Power 48 V
In voltage setting mode
| Ranges | ±1V, ±5V, ±10V, ±20V, ±100V, ±200V |
| Resolution | 16 Bits |
| Accuracy | ±(0.05% of value + 0.05% of range) |
| Maximum current (pulse) | 5 A |
| Maximum current (continuous) | 2 A |
In current setting mode
| Resolution | 16 Bits |
| Ranges |
5 µA, 50 µA, 500 µA, 5 mA, 50 mA, 200 mA, 5 A (2 ms 10% of max. duty cycle) |
| Accuracy |
500µA, 5mA, 50mA, 200mA, 5A ±(0.1% of range + 0.002% of range/V) 50µA ±(1% of range + 0.002% of range/V) 5µA ±(1% of range ) + 0.002% of range/V) |
In voltage measurement mode
| Ranges |
±1V, ±5V, ±10V, ±20V, ±100V, ±200V |
| Resolution | 16 Bits |
| Accuracy |
±(0.05% of value + 0.05% of range) |
| Sampling Rrate |
1 MS/s |
In current measurement mode
| Resolution | 16 Bits |
| Ranges |
5 µA, 50 µA, 500 µA, 5 mA, 50 mA, 200 mA 5 A (2 ms 10% of maximum duty cycle) |
| Accuracy |
500µA, 5mA, 50mA, 200mA, 5A ±(0.1% of range + 0.002% of range/V) 50µA ±(1% of range + 0.002% of range/V) 5µA ±(1% of range ) + 0.002% of range/V) |
| Sampling Rate | 1 MS/s |
